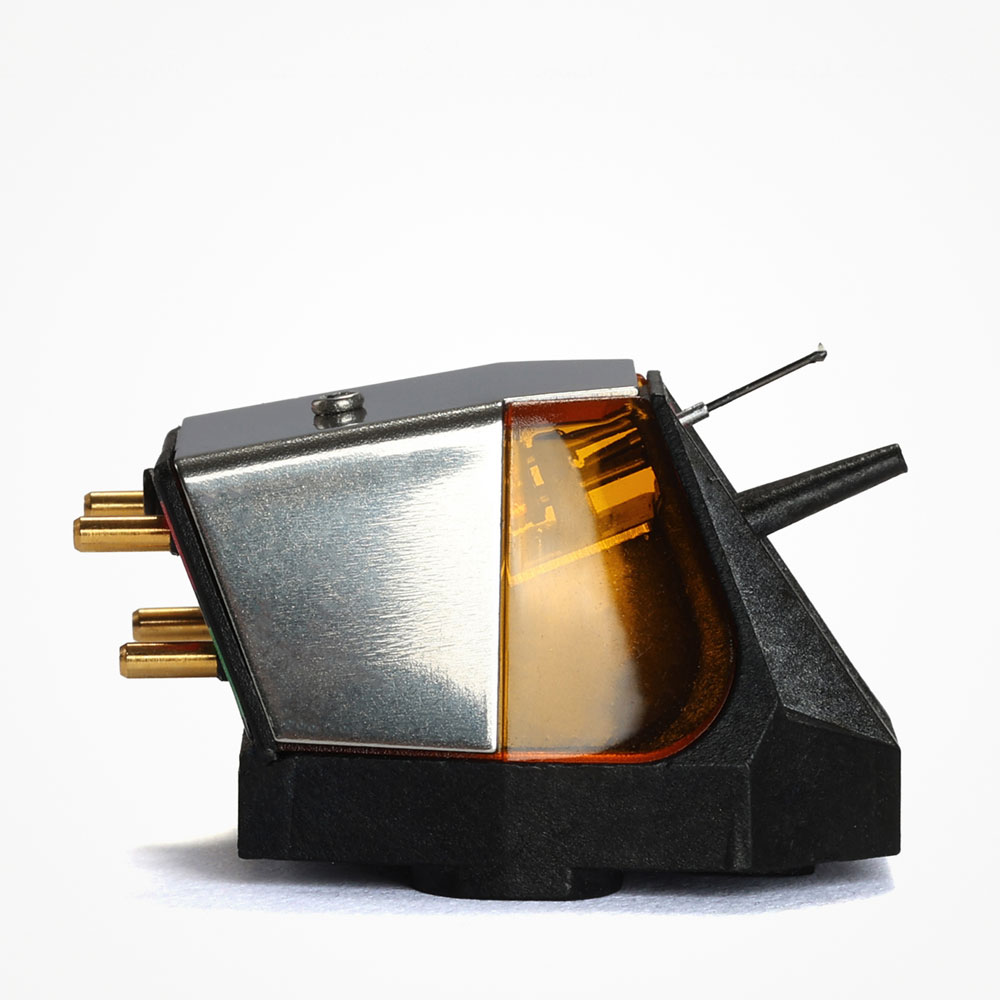

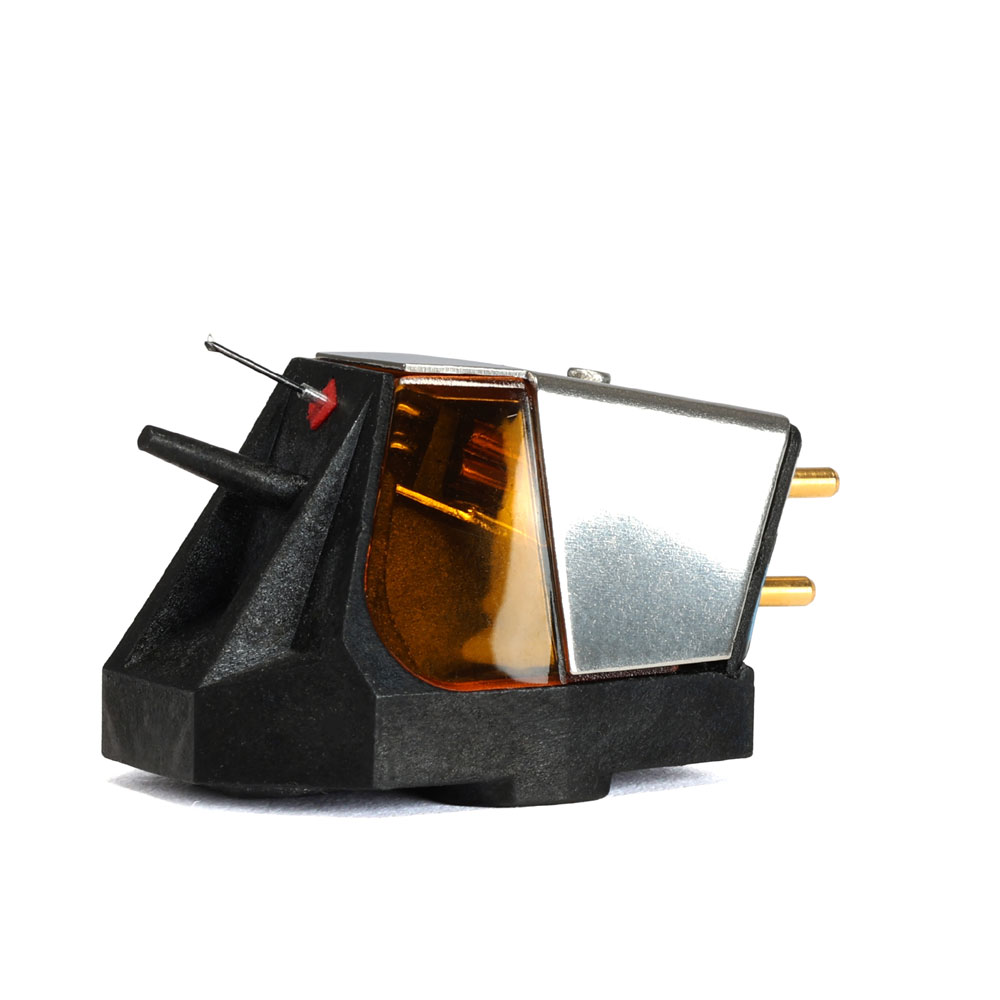

The ND9 moving magnet cartridge from Rega. An innovative design and cutting-edge tech promises reference level performance from moving a magnet cartridge.
The Nd9 cartridge draws on decades of expertise in cartridge engineering and cantilever design to deliver the highest-performing moving magnet cartridge we have ever produced. The Rega design team has introduced a Boron rod cantilever with a Fine Line stylus profile based on the reference Aphelion 2 moving-coil cartridge for use in the Nd9. The Boron cantilever offers exceptional stiffness and low mass, enabling ultra-fast response and outstanding playback accuracy.
Nd Magnet technology
Often used in Moving Coil designs (including Rega’s own) the Nd range are the first moving magnets to utilise a Neodymium (Nd) N55 magnet. This is the world’s most powerful commercially available magnet and is a crucial component that makes this unique design possible by delivering extra power than standard bar magnet designs.
Boron Cantilever & stylus profile
The Nd9 boron cantilever is fitted with a precision perfect fine line nude diamond stylus. This combination provides the ultimate in tracking accuracy and extracts greater levels of detail from the vinyl surface. The challenge we faced with the Nd9 was connecting the Nd magnet to a solid Boron rod. This was achieved by working with a famous watch maker to manufacture an ultra-fine connecting tube with different diameters at each end. Boron is exceptionally light which allows for faster reaction to the changes in record surface and is highly rigid for its mass. A more rigid cantilever bends less so it transmits motion more accurately with less distortion.
Glass filled PPS body
The complete assembly is housed in a zero tolerance Injection moulded glass filled polyphenylene sulphide body (PPS) which is a lightweight and highly rigid material. A low mass body reduces stress on the tonearm bearings and aids free movement which is critical in accurate vinyl replay. This new body design was inspired by Rega’s hugely successful MC range.
If you want to know more about the Rega ND7 MM cartridge, just follow this link to the Rega website.
For other Rega products in our range, just click here.
- Fine line nude diamond profile
- Boron cantilever
- Neodymium magnet
- Unique generator
- Rega 3 point mounting system
- Highly rigid lightweight PPS body
- Handmade stereo cartridge
- 100% recyclable packaging
- Available factory fitted on the Planar 6RS turntable
- Lifetime warranty against manufacture defects
